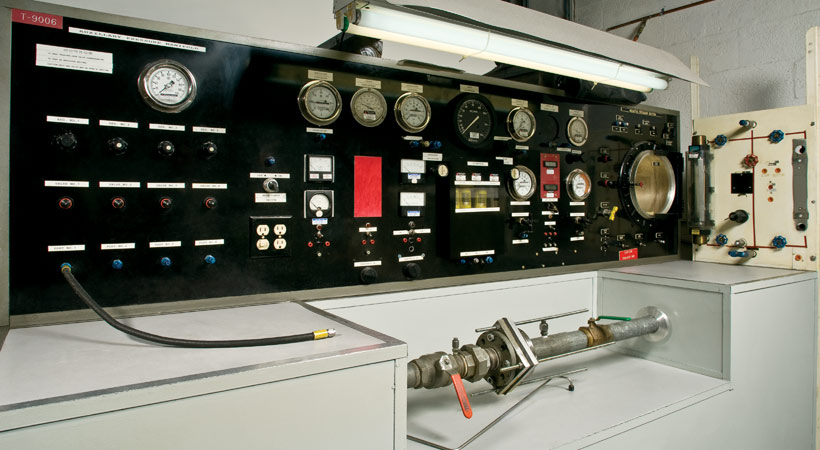

Pneumatic Test Stand
Aircraft Systems uses this test stand to test Pneumatic (air) driven components. This test stand specifications are as follows:
- Air flow: From 0-30 PPM Flow Measuring capability; 1–150 SCFM (in several steps); 1–100 SCFM (in several steps); 0–130 PPM
- Air Temperature: Ambient
- Pressure: Multi-pressure supply 0–115 PSI with additional extended capability of 0–2,400 PSI; Measuring capability 0–5,000 PSI
- Power Supply: DC 0–50 VDC variable; 0–30 Amps variable; AC 115 VAC 30 400CP
- Vacuum: Vacuum chamber 0–61 ''Hg
- Temperature Capacity: Measure from 0–300 degrees Fahrenheit
- Connections: Multi-connections to several test instruments and fixtures
